Product Specs
Accuracy
±1.0% of flow rate
Repeatability
±0.05% of flow rate
Nominal Flow Rates
11.6 lbs/min @ 6,000 psi (316 kg/hr @ 414 bar)
13.3 lbs/min @ 10,000 psi (362 kg/hr @ 690 bar)
14.5 lbs/min @ 15,200 psi (400 kg/hr @ 1,050 bar)
Standard Operating Pressure
6,000 psi -15,200 psi (414 bar -1,050 bar)
Process Temperature
-40 °F to +212 °F (-40°C to +100°C)
Pressure Effect Sensitivity
0.000014% / psi (0.0002% / bar)
Temperature Accuracy
±1.8°F (±1°C) ±0.5% of flow rate
Max Operating Temp
-40 °F to +158 °F (-40°C to +70°C)
Density Accuracy
0.45 kg/h (0.0165 lb/min)
Burst Protection
Rupture Disk: G 1/2″
Connectivity
Flow Meter: 3/8″ Autoclave
Signal Cable Connection: Push-pull connector
Materials
Case: 1.4404 / AISI 316L Stainless Steel
Flow Splitter: 1.4404 / AISI 316L Stainless Steel
Tubes: Sandvik Alloy HP 160 (standard), 1.4404 / AISI 316L Stainless Steel (optional)

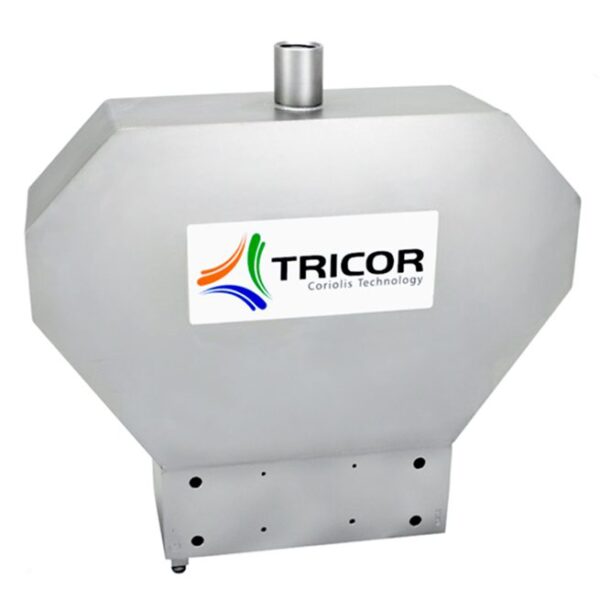

AW-Lake TCMH 0450 High Pressure Hydrogen Coriolis Mass Flow Meters
AW-Lake TCMH 0450 High Pressure Hydrogen Coriolis Mass Flow Meters
The AW-Lake TCMH 0450 High Pressure Hydrogen Coriolis Mass Flow Meter is the world’s first MI-002 / OIML137 certified Coriolis flow meter for hydrogen dispensing and is offered in three pressure ratings: 6,000 psi, 10,000 psi and 15,200 psi. The U-shape tubes are made from Sandvik® Alloy HP 160, chosen to eliminate hydrogen embrittlement, such as in Hydrogen fueling stations.
