Product Specs
Input Voltages
100 -240VAC
12-24VDC
Input Frequency
2.5W (DC models)
50 / 60 Hz (AC models)
Transient Protection
MOV
Counter Input Type
Multifunction
Counter Input Speed
30/sec or 5000/sec
Counter Input Number
2
Counter Input Input
Isolated contact
Transistor
Output Type
Electromechanical relay
Transistor
Mechanical Life
10,000,000 operations (relay only)
Electrical Life
Relay: 100,000 operations minimum (at full rated load
Transistor: 10,000,000 operations minimum
Output Rating
Relay: 5A @250VAC
Transistor: 100mA, 30VDC Max
Counting Modes
7 (programmable)
Counting Display
6 digit LCD
Operating Temp
-10°C to 50° C (14°F to 122°F)
Mounting
Panel Mount
Plug-in
Termination
Relay output: 11 pin socket
Transistor output: 8 pin socket
Housing
Polycarbonate

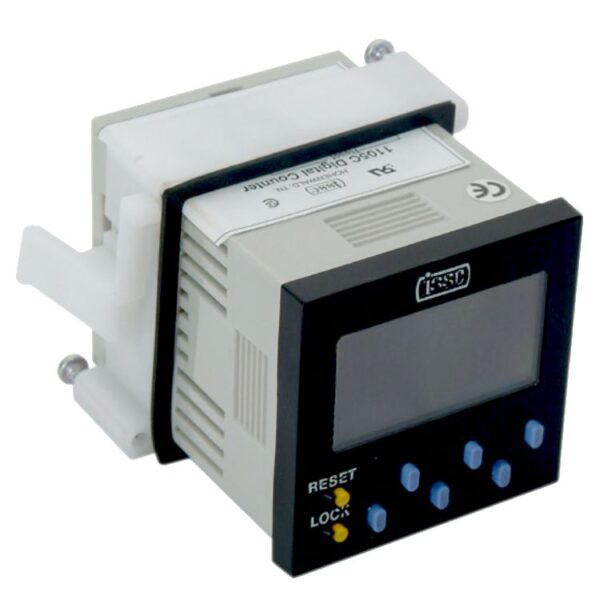

ISSC-Kanson Electronics Model 1105C Plug-in or DIN Panel Mount Digital Preset Counter
ISSC-Kanson Electronics Model 1105C Plug-in or DIN Panel Mount Digital Preset Counter
The ISSC-Kanson Electronics Model 1105C features two 2 input and 5 input functions and a large, 6 digit LCD display. Two input count speeds (30/sec or 5000/sec) can be used to eliminate noise. There are 7 output functions with SPDT relay or optional transistor output. Two power supply options are available, a wide range of 100 to 240 VAC and a 12 to 24VDC only version. A battery back-up maintains memory up to 7 years.
