Max Supply Pressure
250 psig (1,742 kPa)
Connections
1/4″ NPT Inlet
1/4″ NPT Outlet
2 1/4″ NPT Gauge Port (90 degrees from outlet port)
Regulated Ranges
0-125 psi (0-862 kPa)
0-25 psi (0-172 kPa)
0-60 psi (0-414 kPa)
Flow Capacity
25 SCFM (0-125 @200 psi inlet pressure)
Cv 0.5
Sensitivity
0.1 psi (0.7 kPa)
Ambient Temperature Range
-20¼F to +150¼F (-29¼C to +66¼C)
Body Material
Aluminum -Black Anodized Coated
Bowl Material
Aluminum -Black Anodized Coated
Diaphragm Assembly
Buna “N” (Nylon Reinforced)
Nozzle Assembly
Brass with Buna “N” Soft Seat
Nozzle Spring
Stainless Steel
Optional Mounting Bracket
Zinc Plated Steel

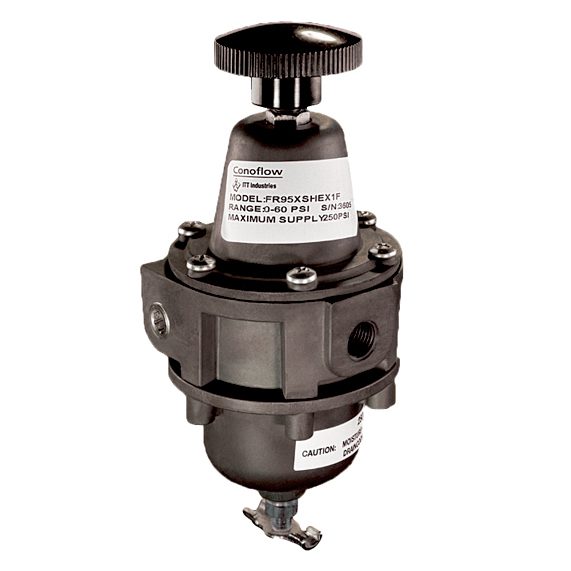

ITT Conoflow FR95 Airpak Filter-Regulator, Aluminum Low Pressure Regulator
ITT Conoflow, Pressure Regulators, Regulators
ITT Conoflow FR95 Airpak Filter-Regulator, Aluminum Low Pressure Regulator
The ITT Conoflow FR95 Series Airpak® Filter-Regulator is used to provide clean, accurate air to instruments, valves, positioners, transducers, and other pneumatic control devices. The design provides high flow capability, durable materials of construction and bubble-tight shutoff. The FR95 low pressure regulator has a maximum supply pressure capability of 250 psig (1724 kPa) with control output settings of 0-25 psig, 0-35 psig, 0-60 psig, and 0-125 psig (0-172 kPa, 0-241 kPa, 0-414kPa, and 0-862 kPa). This light-weight filter-regulator boasts a high flow delivery rate and excellent droop characteristic. The FR95 regulator is offered with 1/4″ NPT inlet and outlet ports, two outlet gauge ports, all aluminum construction, and has a black anodized exterior for superior corrosion resistance.
