Product Specs
Max Supply Pressure
300 psi (1,379 kPa)
Connections
1/4″ NPT
Regulated Ranges
0-25 psi (0-172 kPa)
125 psi (862 kPa)
60 psi (414 kPa)
Sensitivity
0.05″ psi (0.345 kPa)
Ambient Temperature Range
-20¼F to +150¼F (-29¼C to +66¼C) (w/Buna “N” diaphragm)
Body Material
316 Stainless Steel
Bonnet Material
316 Stainless Steel
Diaphragm Assembly
Teflon, Buna “N”, Teflon
Nozzle Assembly
302 Stainless Steel with Soft Seat
316 Stainless Steel with Soft Seat
Range Spring
316 Stainless Steel

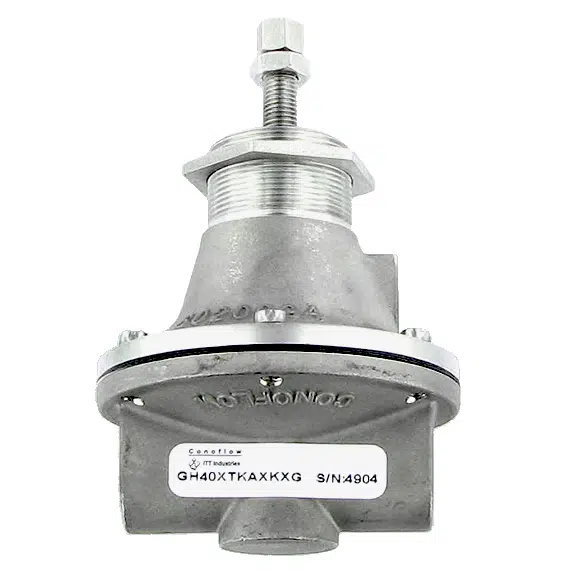

ITT Conoflow GH40 Service Pressure Reducing Regulator with 302 Stainless Steel or 316 Stainless Steel Internals
ITT Conoflow, Pressure Regulators, Regulators
ITT Conoflow GH40 Service Pressure Reducing Regulator with 302 Stainless Steel or 316 Stainless Steel Internals
The ITT Conoflow GH40 Service Pressure Reducing Regulators are for applications where positive shutoff, and minimum air consumption are required. These rugged pressure regulators have flow capacities, and performance characteristics which allow them to operate in both instrument, and industrial applications. These models have either 302 stainless steel internals, or 316 stainless steel internals, and are equipped with Teflon / Buna-N / Teflon diaphragm assembly.
