Product Specs
Process Temperature
450ºF (Standard)
451ºF -600ºF (with Air Purge)
Electrical Connection
1/2″ NPT Female
Wire Size (Min/Max)
Min: 18 AWG / Max: 12 AWG
Power Supply
120 or 240 VAC @ 50-60 Hz
Jerguson Magnicator NightStar LED Illuminator Upgrade for any Magnetic Liquid Level Indicators
Jerguson, Liquid Level Indicators, Liquid Level Instruments
Jerguson Magnicator NightStar LED Illuminator Upgrade for any Magnetic Liquid Level Indicators

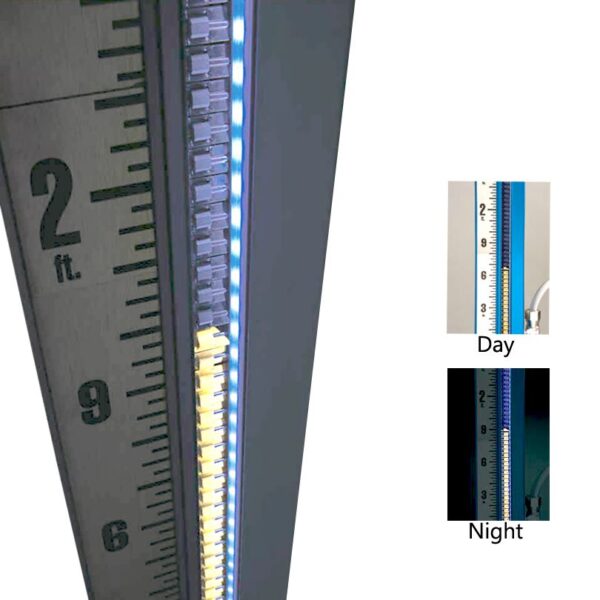

The NightStar® Indicators for the Magnicator make a level indicator continuously visible, night or day with bright LED illumination. They provide an array of bright LEDs to shine on standard mechanical flag indicators. With no light or low-light, the operator can easily and reliably verify level.
