Product Specs
Body Material
Carbon Steel
Stainless Steel
Temperature Range
100°F (38°C) to 600° (316°C)
Pressure Ranges
Carbon Steel: 605 psi (41.7 barg) -750 psi (51.7 barg)
Stainless Steel: 450 psi (31.0 barg) -720 psi (49.6 barg)
Gage Connection
End
NPT
Glass Material
Aluminosilicate
Borosilicate
HP Borosilicate

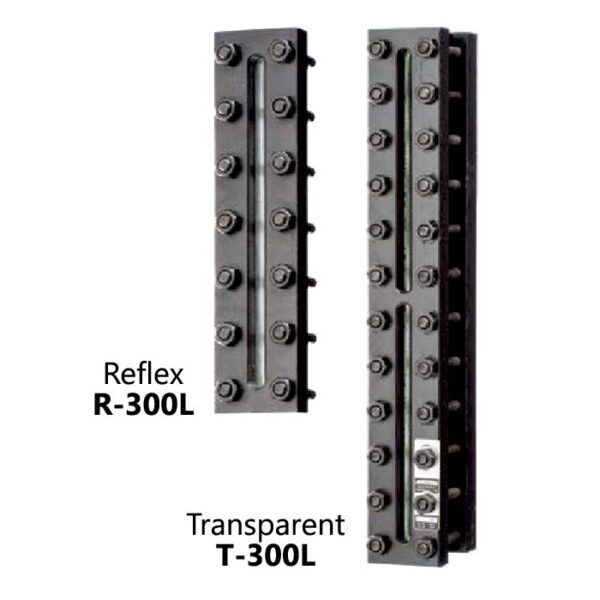

Jerguson Series 300L Liquid Level Gages, Reflex R-300L and Transparent T-300L, Armored Flat Glass Gages, ANSI 300
Jerguson, Level Gauges, Liquid Level Instruments
Jerguson Series 300L Liquid Level Gages, Reflex R-300L and Transparent T-300L, Armored Flat Glass Gages, ANSI 300
The Jerguson Series 300L liquid level gages are lower cost with increased visible ranges. The series 300L provides a more visible range per gage section at an economical price. This glass gage series uses the proprietary Jerguson 25mm glass, which is thinner, narrower, and longer than traditional gage glass. The Series 300L features a recessed gasket surface, bar-stock non-shrouded covers, and ASTM grade bolting. Due to the length of each gage section this model is not recommended for high pressure steam service. All Jerguson armored flat glass gages are hydrostatically tested prior to shipment at 1 1/2 times the design pressure rating at 100°F (38°C).
