Product Specs
Body Material
Carbon Steel
Stainless Steel
Temperature Range
100°F (38°C) to 800° (427°C)
Pressure Ranges
Reflex: 2,300 psi (158.6 barg) -4,000 psi (275.8 barg)
Transparent: 1,730 psi 119.3 barg) -3,000 psi (206.8 barg)
Gage Connection
End
Glass Material
Aluminosilicate
Borosilicate
HP Borosilicate

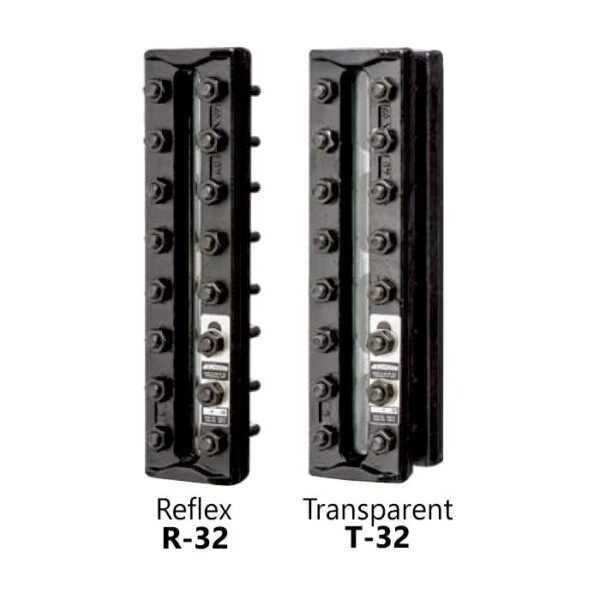

Jerguson Series 32 Liquid Level Gages, Reflex R-32 and Transparent T-32, Armored Flat Glass Gages
Jerguson, Level Gauges, Liquid Level Instruments
Jerguson Series 32 Liquid Level Gages, Reflex R-32 and Transparent T-32, Armored Flat Glass Gages
The Jerguson Series 32 liquid level gage looks very similar to a Series 20, with the exception that the Series 32 armored glass gage features recessed mid-span supports or tie-bars to allow for increased pressure ratings. This is very important as other brands do not recess their mid-span support which causes a blind spot in the vision. A recessed gasket surface provides positive location of the seal gasket during both assembly and field repair and also makes it possible to repair a Jerguson gage while it is mounted to the vessel. The recessed gasket surface is also an important safety feature in the fact that it contains the gasket and helps prevent lateral movement which could lead to a gasket blow-out (as with competitive gages.)
