Product Specs
Body Material
Carbon Steel
Stainless Steel
Temperature Range
100°F (38°C) to 800° (427°C)
Pressure Ranges
2,795 psi (192.7 barg) -5,000 psi (344.7 barg)
Gage Connection
End
NPT
Glass Material
Aluminosilicate
Borosilicate
HP Borosilicate

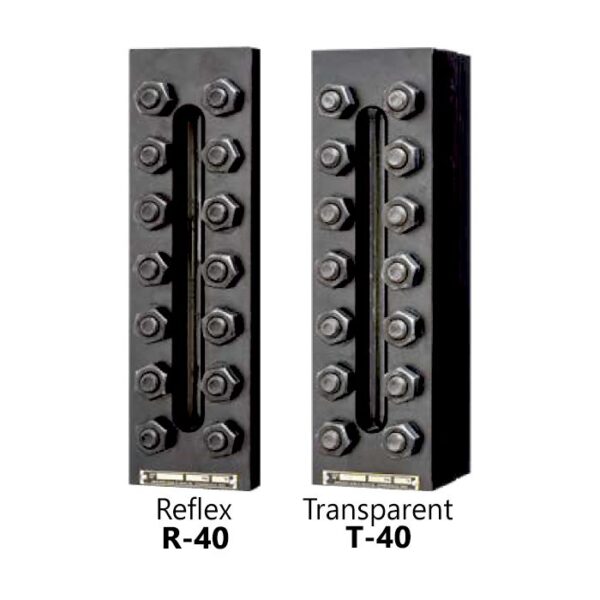

Jerguson Series 40 Heavy Duty Liquid Level Gages, Reflex R-40 and Transparent T-40, Armored Flat Glass Gages
Jerguson, Level Gauges, Liquid Level Instruments
Jerguson Series 40 Heavy Duty Liquid Level Gages, Reflex R-40 and Transparent T-40, Armored Flat Glass Gages
The Jerguson Series 40 liquid level gage is used in heavy duty, high pressure process applications of 4,000 psi, or saturated steam applications requiring a 1,500 WSP rating. Jerguson Series 40 armored flat glass gages are simple, rugged instruments engineered to provide accurate liquid level readings for the life of the vessel they are installed. All liquid level flat glass gages are hydrostatically tested by Jerguson prior to shipment at 1 1/2 times the design pressure rating at 100°F (38°C).
