Product Specs
Temperature Range
100°F (38°C) to 400° (204°C)
Pressure Ranges
NPT Connections: 6,000 psi (413.7 barg)
Socket Weld / High Pressure Connections: 10,000 psi (689.5 barg)
Gage Connection
High Pressure
NPT
Socket Weld
Glass Material
Aluminosilicate
Borosilicate
HP Borosilicate

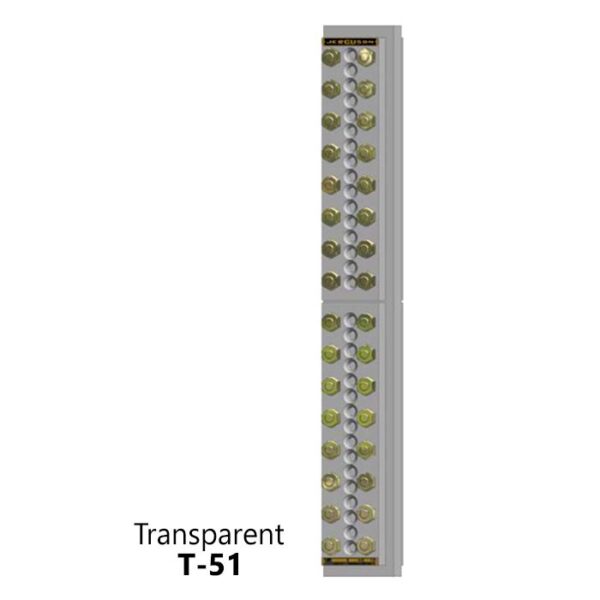

Jerguson Series 51 High Pressure Liquid Level Gages, Transparent T-51, Armored Flat Glass Gages
Jerguson, Level Gauges, Liquid Level Instruments
Jerguson Series 51 High Pressure Liquid Level Gages, Transparent T-51, Armored Flat Glass Gages
The Jerguson Series 51 liquid level gage is a specially designed instrument capable of withstanding high pressures. The one-piece chamber of the Series 51 armored flat glass gage is machined out of solid bar stock carbon steel or stainless steel as specified. It is drilled lengthwise and crosswise at each port leaving tie-bars in between to resist deflection under pressure. The Viton O-rings that seal each port are unaffected by most liquids that cause deterioration in rubber. The O-rings are seated in recessed circular channels to assure proper seating action.
