Product Specs
Accuracy
2″, 2 1/2″: ±2-1-2% of span (ASME B40.100 Grade A)
4″: ±1% of span (ASME B40.100 Grade 1A)
Dial Size
2 1/2″ (63mm)
2″ (50mm)
4″ (100mm)
Process Connection Size
1/4 NPT
1/2 NPT
1/8 NPT
Process Connection Location
Lower
Lower Back
Pressure Ranges
15 psi to 10,000 psi (700bar)
Other equivalent units of pressure or vacuum
Vacuum, Compound, up to 200 psi (16 bar)
Enclosure Rating
IP65
NEMA 4X
Dampening
Liquid Fill (OPT)
Case Style
304 Stainless Steel
Window
Polycarbonate
Movement
Copper Alloy
Optional Extras
Extended ambient temperature range with silicone oil filling
Increased medium temperature with special soft solder
Measuring system and movement from stainless steel
Mounting clamp, for back mount
NS 100: Zero point adjustment (in front)
Other process connection
Panel mounting flange, stainless steel, for back mount connection
Surface mounting flange, stainless steel (only NS 63, 100)

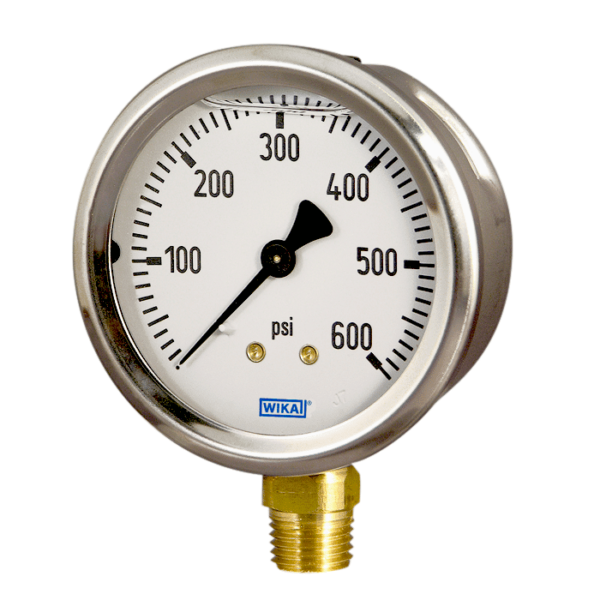

WIKA 212.53, 213.53 STAINLESS STEEL CASE PRESSURE GAUGES
WIKA 212.53, 213.53 STAINLESS STEEL CASE PRESSURE GAUGES
The WIKA® 212.53 and 213.53 industrial pressure gauges feature a stainless steel case for protection in harsh environments. The o-ring seal around the connection makes this gauge field fillable for high vibration and pulsation applications.
