Product Specs
Accuracy
±2.5% of span
Dial Size
6″ (160mm)
Process Connection Size
2 x 1/4″ NPT Female
Process Connection Location
Lower
Pressure Ranges
16 IWC (40 mbar) to 1600 IWC (4000 mbar)
Enclosure Rating
IP65
Mounting
Panel
Case Style
304 Stainless Steel
Window
Polycarbonate
Movement
Stainless Steel
Optional Extras
3-way manifold with integrated working pressure gauge
316 Stainless Steel wetted parts (712.16)
4-20mA transmitter output
4″ nominal case size
Magnetic or inductive alarm contacts
Single and dual Reed switches
Variety of mounting devices

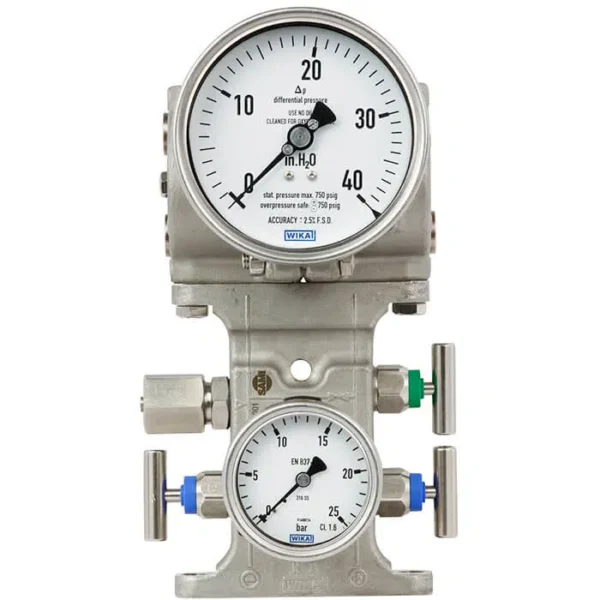

Wika 712.15, 732.15 ‘Cryo Gauge’ Differential Pressure Gauges
Pressure guages, Pressure Instruments, WIKA
Wika 712.15, 732.15 ‘Cryo Gauge’ Differential Pressure Gauges
The WIKA® 712.15 copper alloy and 732.15 stainless steel high-quality and highly innovative differential pressure ‘Cryo Gauges’ are distinguished by their compact and robust design. They are primarily used for liquid level measurement on liquid gas tanks.
