Product Specs
Accuracy
±3.0% of span
±5.0% of full span, ranges ≥ 0.5 InWC (125 Pa)
Dial Size
4 1/2″ (115mm)
Process Connection Size
G1/8 Female
Process Connection Location
Back
Lower
Pressure Ranges
0.2 IWC (50 Pa) to 50 IWC (12,500 Pa)
Enclosure Rating
IP54
NEMA 3
Mounting
Panel
Surface
Case Style
Black thermoplastic, high impact resistant
Window
Polycarbonate
Optional Extras
2 duct connectors
Additional output signal
Ingress protection, NEMA 4 (IP65)
Internationally recognized traceable calibration certificate
Measuring hose PVC or silicone tube 1/8″ or 1/4″ ID, 80’ long
Without mounting case

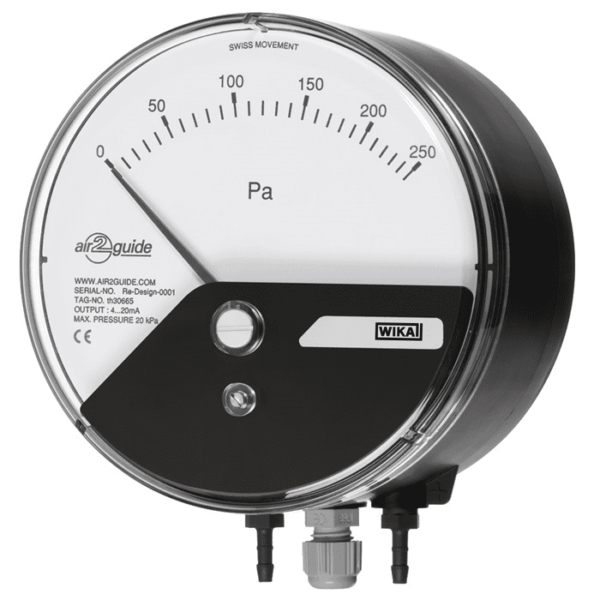

Wika A2G-15 Air2Guide™ Low Pressure Differential Pressure Gauge
Pressure guages, Pressure Instruments, WIKA
Wika A2G-15 Air2Guide™ Low Pressure Differential Pressure Gauge
The WIKA® A2G-15 Air2Guide™ low pressure differential pressure gauge is designed to measure dry, clean non-aggressive gases and air. It is ideally suited to measure differential pressure in filtration systems, pressure monitoring for HVAC, air handlers and ventilation systems and for pressure monitoring of clean rooms, gas scrubbers and dust collection systems.
